808nm/12W-980nm/12W-635nm(650nm) Tri Wavelength Fiber Coupled Laser Diode Module

Wavelength:

Home

Products

Laser Diodes (SM & MM)

Single-Mode Pigtailed LD

Multimode Fiber Coupled LD

Photodiodes

405nm 1~10W Laser System

SM Pigtailed Laser System

3-Channels Laser System

Fiber Receptacle Laser Diode

MM Pigtailed Laser System

Dual-λ Pigtailed Laser Diode

Tri-λ Pigtailed Laser Diode

Dual-λ Fiber Receptacle LD

Tri-Wavelength Fiber Coupled LD

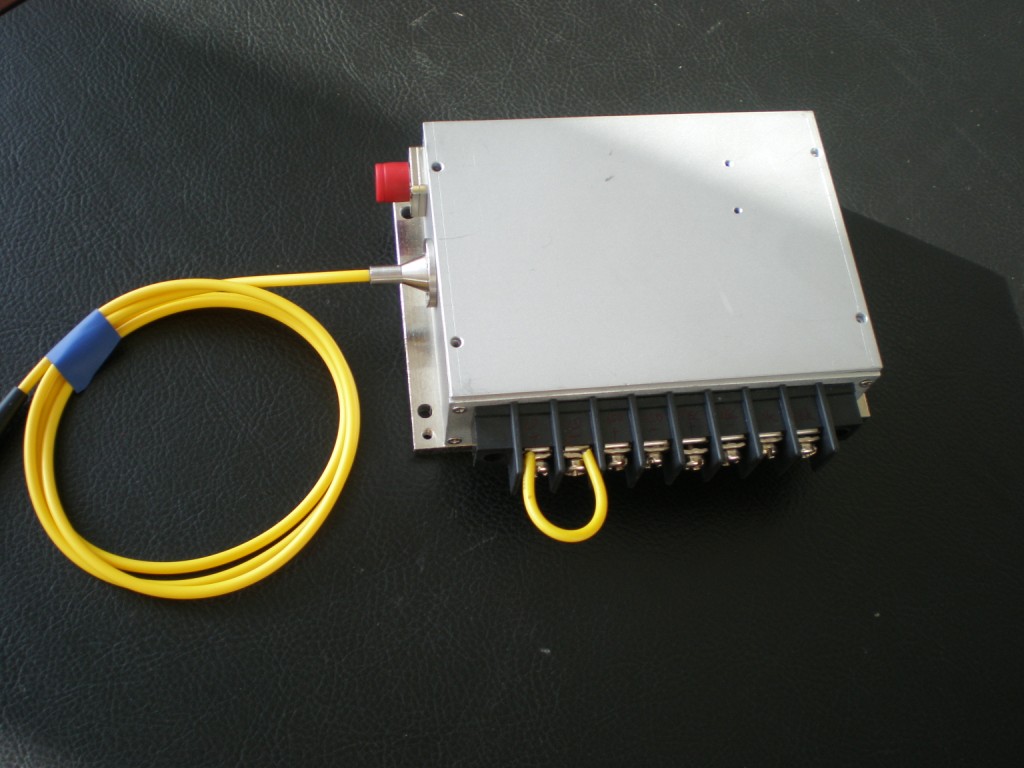

808nm&&980nm&650nm Tri-Wavelength Fiber Coupled Laser Diode Module

12W@808nm & 12W@980nm & 1mw@650nm Tri-Wavelength Output
PD Optional
TEC Cooling Optional

Detailed Specification

Specifications	WSLB-808/012-980/012-H-A
	Wavelength-1	Wavelength-2
Center Wavelength	808nm	980nm
Output Power (CW)	12W	12W
Threshold Current (Typ.)	0.85A	0.65A
Operating Current (Typ.)	5.2A	5.5A
Operating Voltage	6.3V	6.9V
Aiming Beam	2mw@650nm
	635nm,405nm, 445nm as Aiming Beam Optional
TEC Cooling	Optional
Thermistor (10K)	Optional
Photodiodes	Optional
Fiber Core Diameter	<400um
Fiber Jacket	Stainless Steel Armored Optional
Fiber Length	100cm
Connector Type	FC/SMA905
Package	P2

WAVESPECTRUM offer Customized Tri-Wavelength

Fiber Coupled Laser Module:

1) The Power of 808nm : 800mW to 30W Optional

2) The Power of 980nm : 800mW to 30W Optional

3）The Aiming Beam can be 635nm or 650nm

4） Photodiodes Optional

5） TEC Cooling Optional

6)   Other Wavelength Optional
  Such as 830nm, 880nm, 915nm,940nm, 980nm,

  1064nm, 1450nm, 1470nm, 1550nm, etc.)

If you have any special Request, Please contact us

with info@wavespectrum-laser.com

Specifications

WSLB-808/012-980/012-H-A
