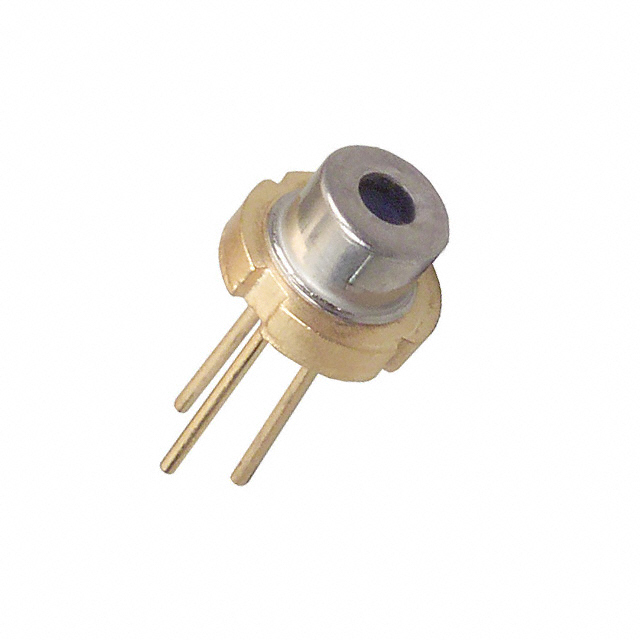

685nm SM Laser Diodes
685nm Laser Diodes

685nm
50mw output Power
5.6mm Package
Single mode Beam
Detailed Specification







Specifications

WSLD-685-050m-1



Min

Type

Max

Center Wavelength@25℃

680nm

685nm

690nm

Recommend Operating Temperature

25℃

Output Power

----



50mw



----

Emitter

----

Single

----

Beam Divergence (FWHM)

12°┴ x 7°//

13°┴ x 8°//

22°┴ x 12°//

PD Forward Current

----

----

----

Slope Efficiency

----

1.1mW/mA

1.2mW/mA

Threshold Current (Typ.)

20mA

25mA

35mA

Operating Current (Typ.)

----

70mA

80mA

Operating Voltage

----

2.4V

2.7V

Package Style

TO18
