940nm Fiber Coupled LD

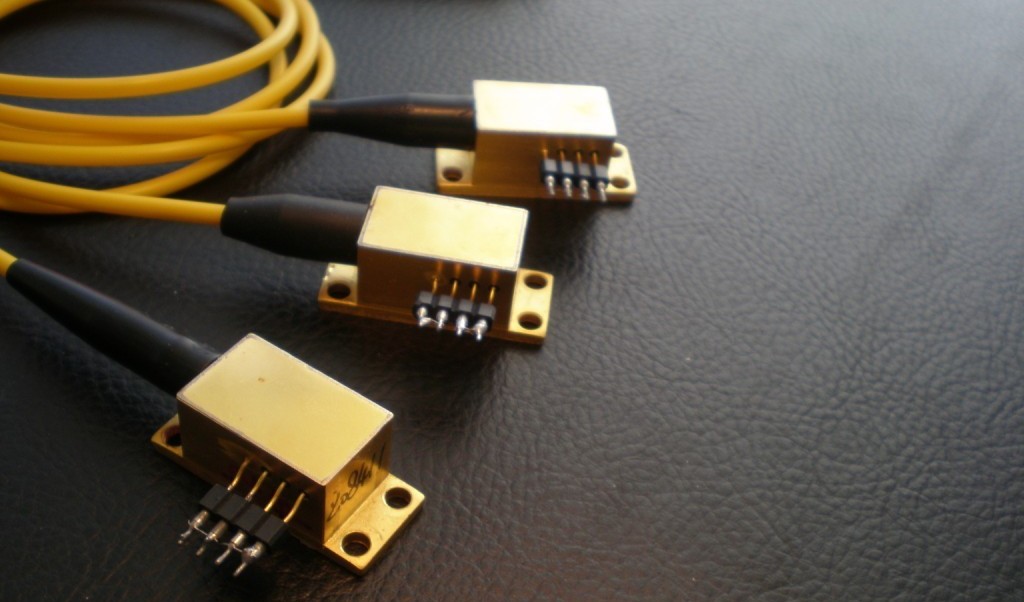

940nm Fiber Coupled Laser Module
940nm
2W output power
4-pin Package
PD Optional
940nm
2W output power
4-pin Package
PD Optional
Detailed Specification
Specifications
|
940nm 2W Fiber Coupled Laser Diode (LD)WSLX-940-002-H
|
|
Center Wavelength@25≧ |
940±10nm |
|
Spectral Width (FWHM) |
<3nm |
|
Output Power |
2W |
|
Temperature /Wavelength |
0.3nm / °C |
|
Threshold Current (Typ.) |
350mA |
|
Operating Current (Typ.) |
3A |
|
Operating Voltage |
2.0V |
|
Recommended Temperature |
|
|
TEC Max. Current |
---- |
|
TEC Max. Voltage |
---- |
|
Fiber Core Diameter |
105um (60um, 200um,400um Optional) |
|
Fiber Numerical Aperture |
0.22 (0.12N.A. , 0.37N.A. Optional) |
|
Fiber Length |
80cm |
|
Connector Type |
SMA905/ST/FC |
|
Package Style |
2-pin, 4-pin |
