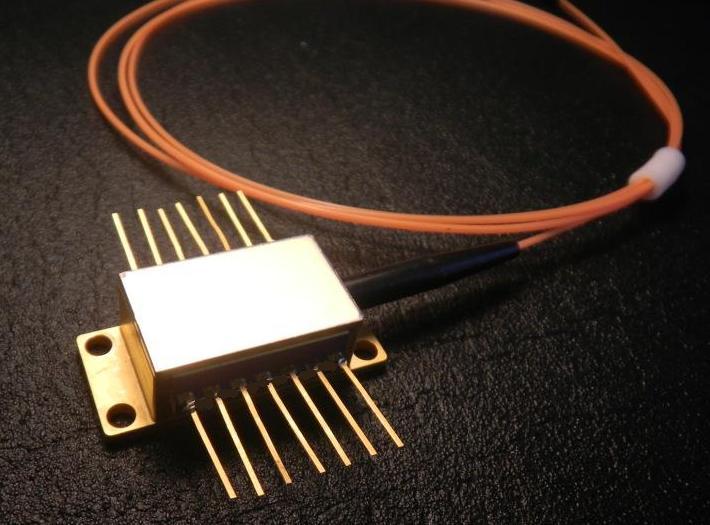

940nm Fiber Coupled Laser Diode
940nm Fiber Coupled LD
940nm
1.5W Output Power
14-pin Butterfly Package
Built-in TEC Cooling
940nm
1.5W Output Power
14-pin Butterfly Package
Built-in TEC Cooling
Detailed Specification
Specifications
|
940nm 1W~1.5W Fiber Coupled Laser Diode (LD) with BTF PackageWSLX-940-001-H-T
|
||
|
|
Min |
Type |
Max |
|
Center Wavelength@25≧ |
±3nm |
940 |
±10nm |
|
Spectral Width (FWHM) |
3nm |
||
|
Output Power |
1W |
1.5W |
---- |
|
Temperature /Wavelength |
0.3nm / °C |
||
|
Threshold Current (Typ.) |
400mA |
||
|
Operating Current (Typ.) |
2.2A |
||
|
Operating Voltage |
2.0V |
||
|
Recommended Temperature |
|
||
|
TEC Max Current |
1.8A |
||
|
TEC Max Voltage |
2.5V |
||
|
Fiber Core |
105um (60um , 200um , 400um Optional) |
||
|
Fiber Length |
80cm |
||
|
Connector Type |
SMA905/ST/FC |
||
|
Package Style |
14-PIN Butterfly Package |
||
