808nm Fiber Coupled LD

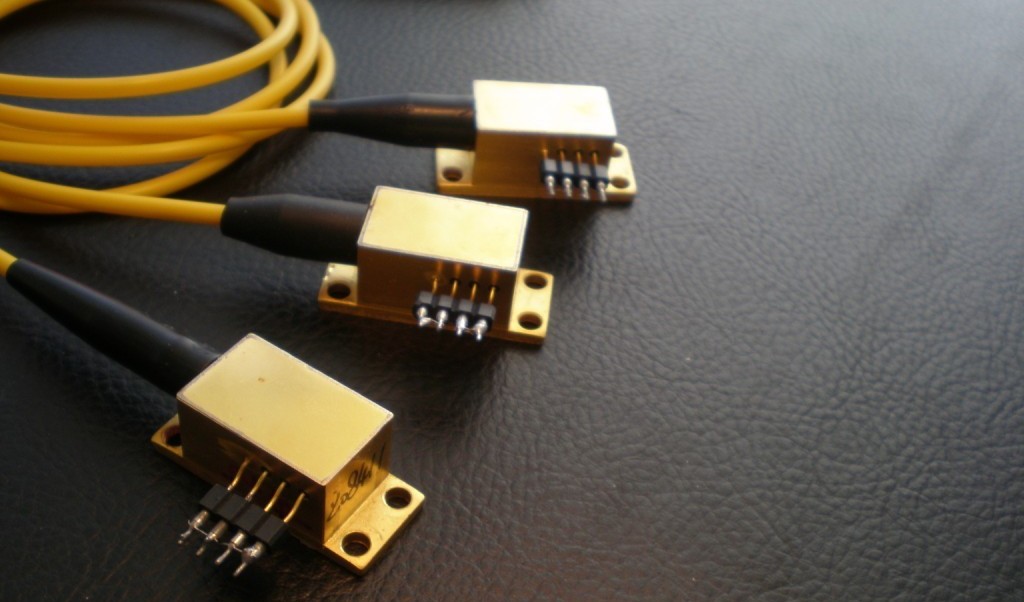

808nm High Power Fiber Coupled LD
808nm
8W Output Power
200um or 400um Fiber Core
2-pin or 4-pin Package
PD Optional
808nm
8W Output Power
200um or 400um Fiber Core
2-pin or 4-pin Package
PD Optional
Detailed Specification
808nm~810nm 7W~8W Fiber Coupled Laser Diode (LD)Specifications
|
WSLX-808-008-H
|
|||
|
Center Wavelength@25≧ |
±3nm |
808nm |
±10nm |
|
|
Spectral Width (FWHM) |
1nm |
---- |
3nm |
|
|
Output Power |
---- |
8 W |
---- |
|
|
Temperature /Wavelength |
0.28nm / °C |
|||
|
Threshold Current |
1A |
|||
|
Operating Current |
11A |
|||
|
Operating Voltage |
2.0V |
|||
|
Slope Efficiency |
0.9W/A |
|||
|
TEC Max. Current |
---- |
|||
|
TEC Max. Voltage |
---- |
|||
|
Fiber Core Diameter |
200um |
400um |
||
|
N.A. |
0.22 |
0.37 |
||
|
Fiber Length |
100cm |
|||
|
Connector Type |
SMA905/ST/FC |
|||
|
Package Style |
2-pin or 4-pin |
|||
