808nm Fiber Coupled Laser Diode

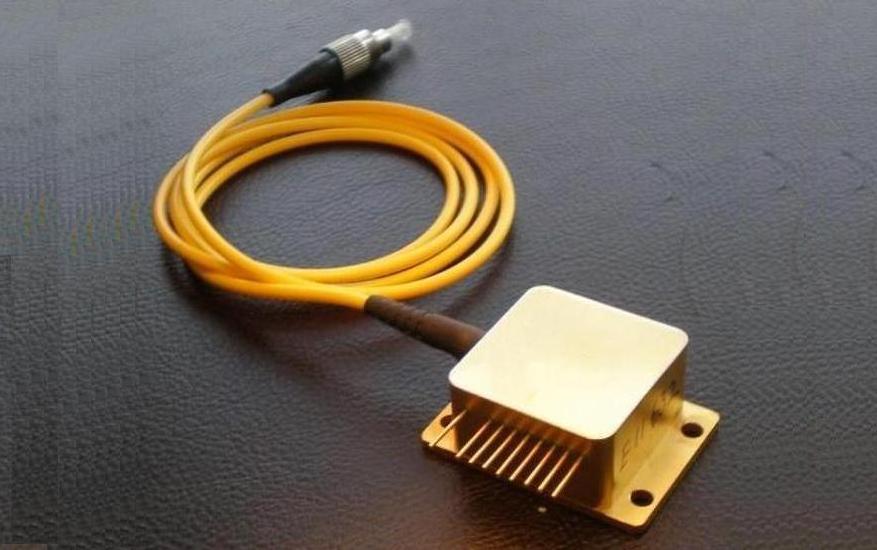

808nm HHL Package Laser Diodes
808nm
5W~6W Output Power
HHL Package
Built-in PD
Built-in TEC Cooling
200um or 400um Fiber Core
808nm
5W~6W Output Power
HHL Package
Built-in PD
Built-in TEC Cooling
200um or 400um Fiber Core
Detailed Specification
Specifications
|
808nm~810nm 5W~6W Fiber Coupled Laser Diode (LD) with HHL PacakgeWSLX-808-006-H-T
|
||
|
|
Min |
Type |
Max |
|
Center Wavelength@25≧ |
±3nm |
808nm |
±10nm |
|
Spectral Width (FWHM) |
3nm |
||
|
Output Power |
5W |
6W |
---- |
|
Temperature/ Wavelength |
0.3nm / °C |
||
|
Threshold Current (Typ.) |
650mA |
||
|
Operating Current (Typ.) |
6.8A |
||
|
Operating Voltage |
2.0V |
||
|
Recommended Temperature |
|
||
|
TEC Max. Current |
4A |
||
|
TEC Max. Voltage |
9.8V |
||
|
Fiber Core Diameter |
200um , 400um |
||
|
Package |
9-PIN HHL |
||
|
Fiber Length |
80cm |
||
|
Connector Type |
SMA905/ST/FC |
||
