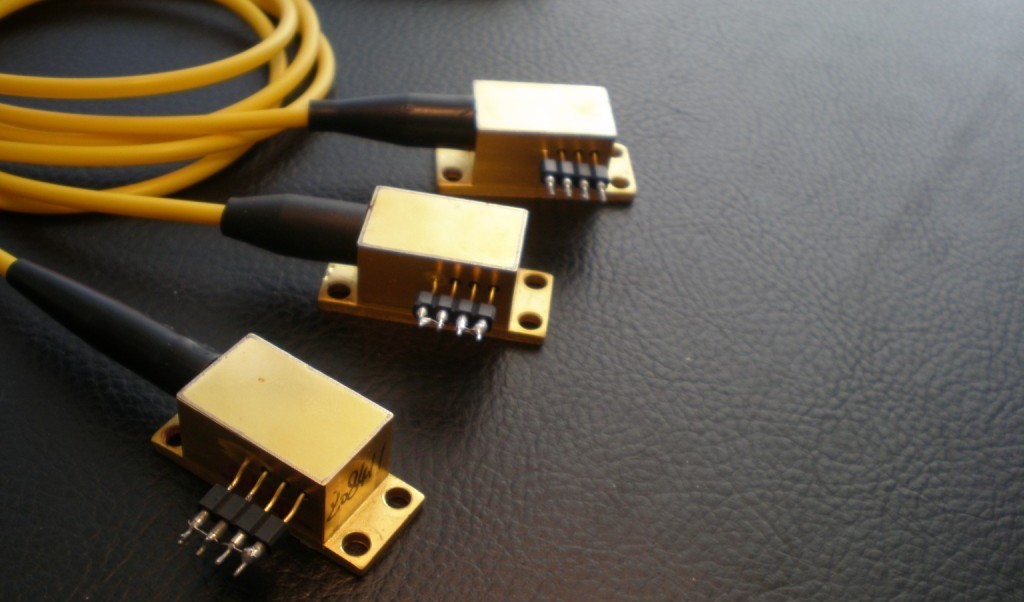

808nm High power Fiber Coupled LD
808nm
5W~6W Output Power
4-PIN Package
PD optional
808nm
5W~6W Output Power
4-PIN Package
PD optional
Detailed Specification
Specifications
|
808nm 5w~6w Fiber Coupled Laser Diode (LD) with HHL PackageWSLX-808-006-H
|
||
|
|
Min |
Type |
Max |
|
Center Wavelength@25≧ |
±3nm |
808nm |
±10nm |
|
Spectral Width (FWHM) |
3nm |
||
|
Output Power |
5W |
6W |
---- |
|
Temperature/Wavelength |
0.3nm / °C |
||
|
Threshold Current (Typ.) |
650mA |
||
|
Operating Current (Typ.) |
6.8A |
||
|
Operating Voltage |
2.0V |
||
|
Recommended Temperature |
|
||
|
TEC Max. Current |
---- |
||
|
TEC Max. Voltage |
---- |
||
|
Fiber Core Diameter |
200um , 400um |
||
|
N.A. |
0.22N.A. (0.37N.A. Optional) |
||
|
Package |
2-PIN , 4-PIN |
||
|
Fiber Length |
80cm |
||
|
Connector Type |
SMA905/ST/FC |
||
