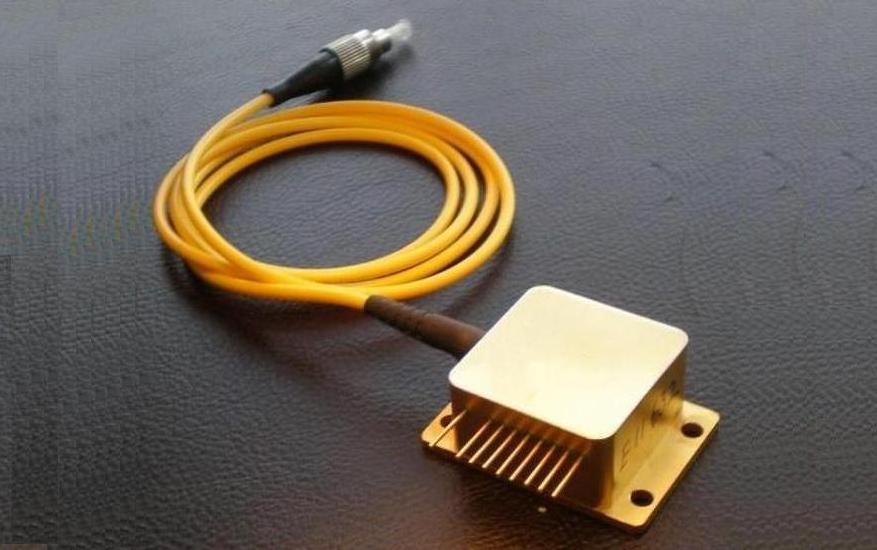

808nm HHL Package Fiber Coupled LD

808nm
4W output Power
9-pin HHL Package
105um 200um 400um Fiber Optional
Detailed Specification



Specifications

808nm HHL Package Fiber Coupled LD (laser Diode)

with 4W Power



   WSLX-808-004-H-T



Min

Type

Max

Center Wavelength@25≧

±3nm

808nm

±10nm

Spectral Width (FWHM)

----

----

3nm

Output Power

----

4W

----

Temperature Coefficient of Wavelength

0.3nm / °C

Threshold Current (Typ.)

750mA

Operating Current (Typ.)

6.5A

Operating Voltage

2.0V

Recommended Case Temperature

25°C

TEC Max. Current

4A

TEC Max. Voltage

9.8V

Fiber Core Diameter

200um (105um, 400um Optional)

N.A.

0.22N.A. (0.37N.A. Optional)

Package

9-PIN HHL

Fiber Length

80cm

Connector Type

SMA905/ST/FC
