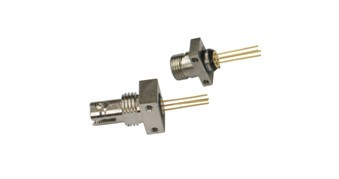

980nm SM Receptacle Laser Diodes
980nm SM Receptacle Package Laser Diodes
980nm
Receptacle Package
For 9um SMF
Built-in PD
980nm
Receptacle Package
For 9um SMF
Built-in PD
Detailed Specification
Specifications
|
980nm 10mw SM Receptacle Laser Diode980nm Receptacle LD Module with SMFWSLR-980-010m-9-PD
|
||
|
|
Min |
Type |
Max |
|
Center Wavelength@25℃ |
970nm |
980nm |
990nm |
|
Spectral Width (FWHM) |
---- |
2.0nm |
3.0nm |
|
Optical Fiber Output Power (After Fiber） |
---- |
10mW |
---- |
|
Fiber Specification |
9 um Fiber |
||
|
Slope Efficiency |
0.8mW/mA |
0.9mW/mA |
---- |
|
Monitor Current |
---- |
0.1mA |
---- |
|
PD Reverse Voltage |
---- |
30V |
---- |
|
Ferrule Type |
FC |
||
|
Other Customized Ferrule |
ST , SC |
||
|
Threshold Current (Typ.) |
---- |
35mA |
45mA |
|
Operating Current (Typ.) |
---- |
85mA |
100mA |
|
Operating Voltage |
---- |
2.0V |
2.5V |
|
Package Style |
Receptacle |
||
|
|
|
||
