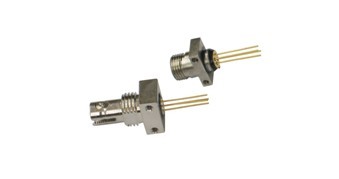

850nm Receptacle Package LD
850nm SM Receptacle Package LD
850nm
Receptacle Package
For 9um SM Fiber
Built-in PD
850nm
Receptacle Package
For 9um SM Fiber
Built-in PD
Detailed Specification
Specifications
|
850nm 2mw SM Receptacle LD Module850nm Receptacle Laser Diode 9umWSLR-850-002m-9-PD
|
||
|
|
Min |
Type |
Max |
|
Center Wavelength@25℃ |
835nm |
850nm |
855nm |
|
Spectral Width (FWHM) |
---- |
---- |
---- |
|
Optical Fiber Output Power (After Fiber） |
---- |
1.5mW |
2mw |
|
Fiber Specification |
9um Fiber |
||
|
Slope Efficiency |
---- |
0.7mW/mA |
---- |
|
Monitor Current |
---- |
0.3mA |
---- |
|
PD Reverse Voltage |
---- |
30V |
---- |
|
Ferrule Type |
FC |
||
|
Other Customized Ferrule Type |
ST, SC |
||
|
Threshold Current (Typ.) |
---- |
17mA |
23mA |
|
Operating Current (Typ.) |
---- |
28mA |
38mA |
|
Operating Voltage |
---- |
1.7V |
2.1V |
|
Package Style |
Receptacle |
||
|
|
|
||
