850nm Receptacle Laser Diodes

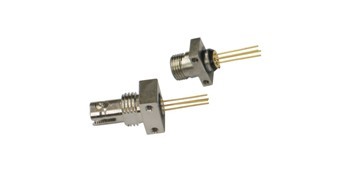

850nm Receptacle Laser Diode Module
850nm
Receptacle Package
160mw output Power
MM Fiber
Built-in PD
850nm
Receptacle Package
160mw output Power
MM Fiber
Built-in PD
Detailed Specification
Specifications
|
850nm 150mw~160mw Receptacle Laser Diode (LD)850nm MM Fiber Receptacle Laser Diode (LD) ModuleWSLR-850-160m-M-PD
|
||
|
|
Min |
Type |
Max |
|
Center Wavelength@25℃ |
830nm |
850nm |
855nm |
|
Spectral Width (FWHM) |
---- |
2.0nm |
---- |
|
Optical Fiber Output Power (After Fiber） |
---- |
160mW |
---- |
|
Fiber Specification |
62.5um or 105um Fiber Core |
||
|
0.22 N.A. |
|||
|
Slope Efficiency |
0.7mW/mA |
0.9mW/mA |
---- |
|
Monitor Current |
---- |
0.1mA |
---- |
|
PD Reverse Voltage |
---- |
30V |
---- |
|
Ferrule Type |
FC |
||
|
Other Customized Ferrule Type |
SC, ST |
||
|
Threshold Current (Typ.) |
---- |
140mA |
170mA |
|
Operating Current (Typ.) |
---- |
520mA |
670mA |
|
Operating Voltage |
---- |
1.8V |
2.2V |
|
Package Style |
Receptacle |
||
|
Recommended Operating Temperature |
25℃ |
||
