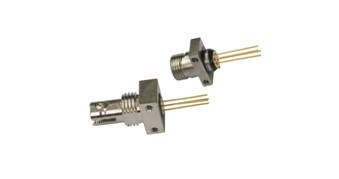

850nm Receptacle Laser Diodes
850nm Receptacle Laser Diodes
850nm
Receptacle Package
5mW output Power
MM Fiber
Built-in PD
850nm
Receptacle Package
5mW output Power
MM Fiber
Built-in PD
Detailed Specification
Specifications
|
850nm 5mw MM Fiber Receptacle LD850nm Receptacle Laser Diode ModuleWSLR-850-005m-M-PD
|
||
|
|
Min |
Type |
Max |
|
Center Wavelength@25℃ |
830nm |
850nm |
855nm |
|
Spectral Width (FWHM) |
---- |
2.0nm |
---- |
|
Optical Fiber Output Power (After Fiber） |
---- |
5mW |
---- |
|
Fiber Specification |
62.5um ,105um |
||
|
0.22 N.A. |
|||
|
Slope Efficiency |
---- |
0.7mW/mA |
---- |
|
Monitor Current |
---- |
0.3mA |
---- |
|
PD Reverse Voltage |
---- |
30V |
---- |
|
Ferrule Type |
FC |
||
|
Other Customized Ferrule Type |
ST , SC |
||
|
Threshold Current (Typ.) |
---- |
17mA |
23mA |
|
Operating Current (Typ.) |
---- |
28mA |
38mA |
|
Operating Voltage |
---- |
1.7V |
2.1V |
|
Package Style |
Receptacle |
||
|
Recommended Operating Temperature |
25℃ |
||
