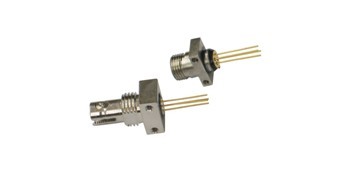

830nm Receptacle Laser Diode Module
830nm
50mW outptu power
Receptacle Package
MM Fiber
Built-in Photodiodes
830nm
50mW outptu power
Receptacle Package
MM Fiber
Built-in Photodiodes
Detailed Specification
Specifications
|
830nm 50mw Fiber Receptacle LD830nm MM Receptacle Laser DiodesWSLR-830-050m-M-PD
|
||
|
|
Min |
Type |
Max |
|
Center Wavelength@25℃ |
820nm |
830nm |
840nm |
|
Spectral Width (FWHM) |
---- |
2nm |
---- |
|
Optical Fiber Output Power (After Fiber） |
---- |
50mw |
---- |
|
Fiber Specification |
62.5um ，105um（ or more） |
||
|
0.22 |
|||
|
Slope Efficiency |
0.7mW/mA |
1.1mW/mA |
---- |
|
Monitor Current |
---- |
0.5mA |
---- |
|
PD Reverse Voltage |
---- |
30V |
---- |
|
Ferrule Type |
FC |
||
|
Other Customized Ferrule Type |
SC, ST |
||
|
Threshold Current (Typ.) |
---- |
45mA |
55mA |
|
Operating Current (Typ.) |
---- |
120mA |
140mA |
|
Operating Voltage |
---- |
2.2V |
2.5V |
|
Package Style |
Receptacle |
||
|
Recommended Operating Temperature |
25℃ |
||
