830nm Receptacle LD Module

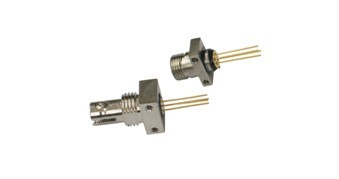

830nm Receptacle Laser Diodes

830nm
Receptacle Package
15mW output power
MM Fiber
Built-in PD
Detailed Specification





Specifications

830nm 10mw~20mw Receptacle LD

830nm MM Fiber Receptacle Laser Diodes

WSLR-830-015m-M-PD



Min

Type

Max

Center Wavelength@25

820nm

830nm

840nm

Spectral Width (FWHM)

----

2nm

3nm

Optical Fiber Output Power (After Fiber

----

15mw

----

Fiber Specification

62.5um 105um or more

0.22

Slope Efficiency

0.3mW/mA

0.7mW/mA

----

Monitor Current

----

0.3mA

----

PD Reverse Voltage

----

30V

----

Ferrule Type

FC

Other Customized Ferrule Type

SC, ST

Threshold Current (Typ.)

----

23mA

30mA

Operating Current (Typ.)

----

63mA

73mA

Operating Voltage

----

1.7V

2.3V

Package Style

Receptacle

Recommended Operating Temperature

25
