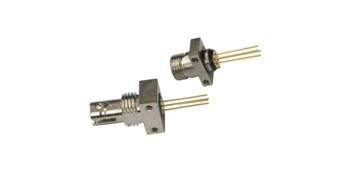

685nm Receptacle Laser Diode
685nm Receptacle Package Laser Diodes

685nm
Receptacle Package
MM Fiber
Built-in PD
Detailed Specification





Specifications

685nm 15mw MM Receptacle Laser Diode (LD) Module

WSLR-685-015m-M-PD



Min

Type

Max

Center Wavelength@25

670nm

685nm

700nm

Spectral Width (FWHM)

----

----

----

Optical Fiber Output Power (After Fiber

----

15mW

----

Fiber Specification

 62.5um 105um or more

0.22 (or more)

Slope Efficiency

0.4mW/mA

0.5mW/mA

----

Monitor Current

0.05mA

0.3mA

2.5mA

PD Reverse Voltage

----

30V

----

Ferrule Type

FC

Other Customized Ferrule Type

SC , ST

Threshold Current (Typ.)

----

35mA

60mA

Operating Current (Typ.)

----

100mA

140mA

Operating Voltage

2.0V

2.7V

3.0V

Package Style

Receptacle

Recommended Operating Temperature

25
