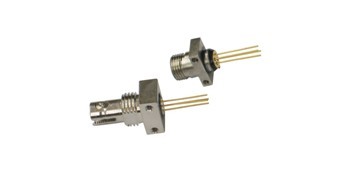

650nm Receptacle Laser Diode
650nm Receptacle Package Laser Diodes

650nm
Receptacle Package
2mw output power
MM Fiber
High stability
High Lifetime
Detailed Specification





Specifications

650nm~658nm~660nm 2mw  MM Receptacle Laser Diode (LD)Module

WSLR-650-002m-M-PD



Min

Type

Max

Center Wavelength@25

645nm

655nm

660nm

Spectral Width (FWHM)

----

2.0nm

----

Optical Fiber Output Power (After Fiber

----

2mw

----

Fiber Specification

 62.5um 105um  or more

0.22 (or more)

Slope Efficiency

0.4mW/mA

0.6mW/mA

1.0mW/mA

Monitor Current

0.05mA

0.15mA

0.3mA

PD Reverse Voltage

----

30V

----

Ferrule Type

FC

Other Customized Ferrule Type

ST , SC

Threshold Current (Typ.)

----

20mA

25mA

Operating Current (Typ.)

----

36mA

45mA

Operating Voltage

----

2.3V

2.6V

Package Style

Receptacle
