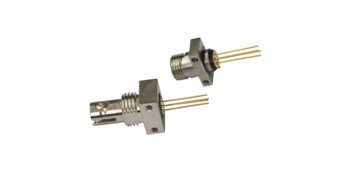

635nm Receptacle Laser Diode
635nm Receptacle Package Laser Diodes
635nm
Receptacle Package
>160mw output power
MM Fiber
High Lifetime
High Stability
635nm
Receptacle Package
>160mw output power
MM Fiber
High Lifetime
High Stability
Detailed Specification
Specifications
|
635nm 160mw Receptacle Laser Diode (LD) ModuleWSLR-635-160m-M
|
||
|
|
Min |
Type |
Max |
|
Center Wavelength@25℃ |
630nm |
638nm |
645nm |
|
Spectral Width (FWHM) |
---- |
2.0nm |
---- |
|
Optical Fiber Output Power (After Fiber） |
---- |
160mw |
---- |
|
Fiber Specification |
105um （ or more） |
||
|
0.22 (or more) |
|||
|
Slope Efficiency |
---- |
1.0mW/mA |
1.3mW/mA |
|
Ferrule Type |
FC |
||
|
Other Customized Ferrule Type |
SC, ST |
||
|
Threshold Current (Typ.) |
---- |
135mA |
180mA |
|
Operating Current (Typ.) |
---- |
450mA |
480mA |
|
Operating Voltage |
---- |
2.3V |
2.5V |
|
Package Style |
Receptacle |
||
|
Recommended Operating Temperature |
25℃ |
||
