980nm 100mw Laser Diode 5.6mm Package

980nm 100mw LD

Wavespectrum Laser, Inc.

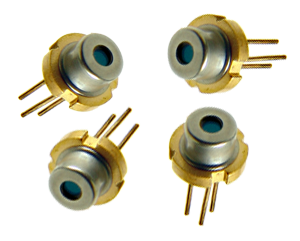

100mw 980nm Laser Diode TO18 Package

WSLD-980-100m-1-PD

Parameter

Symbol

Value

Unit

Reverse Voltage

V_r

2.0

V

Operating Temperature

T_op

-10~+40

°C

Storage Temperature

T_stg

-15 ~ +85

°C

Leadsoldering temperature

T_is

260

°C

Features

Applications

         980nm laser diode

         100mW output power

         CW

         High Power

         TO18  package

         Medical laser treatment

         Laser indicator

         Laser detector

Specifications

WSLD-980-100m-1-PD

Min

Type

Max

Center Wavelength@25℃

970nm

980nm

990nm

Spectral Width (FWHM)

3.0nm

Output Power(cw)

100mW

Emitter

Single

Beam Divergence (FWHM)

32°_┴ x 6°_//

Monitor Current

----

PD Reverse Voltage

----

Temperature Coefficient of Wavelength

0.3nm / °C

Slope Efficiency

0.85mW/mA

Threshold Current (Typ.)

40mA

Operating Current (Typ.)

160mA

Operating Voltage

2.4V

Package Style

TO18
