445nm 50mw Single Mode LD

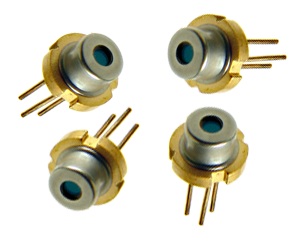

445nm Laser Diode

445nm laser diode
50mW output power
single mode
3.8mm package
Detailed Specification





Specifications

WSLD-445-050m-1





Min

Type

Max

Center Wavelength@25

440nm

445nm

460nm

Spectral Width (FWHM)

2.0nm



Output Power

----



50mW



80mW





Emitter

Single



Beam Divergence (FWHM)

15° x 4°//

21° x 7°//

25° x 15°//

Monitor Current

----



Slope Efficiency

0.85mW/mA

0.9mW/mA

1.2mW/mA



Threshold Current (Typ.)

----

30mA

60mA



Operating Current (Typ.)

----

80mA

120mA



Operating Voltage

----

5.5V

6.5V



Package Style

3.8mm
