1450nm Fiber Coupled Laser Diodes

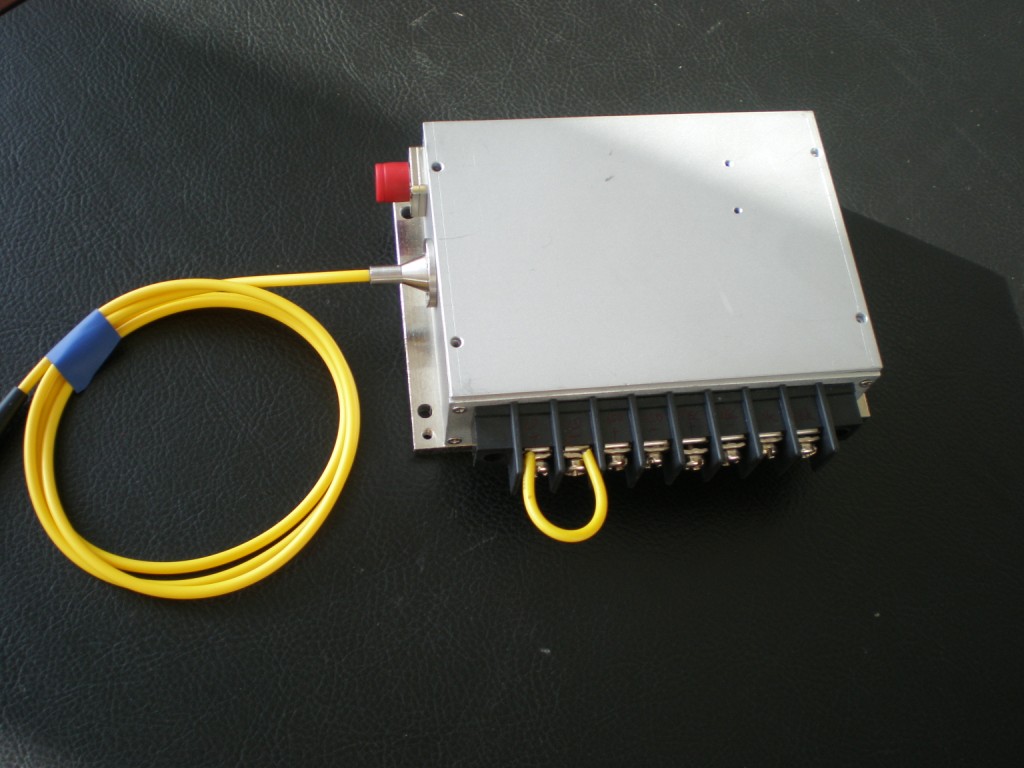

1450nm Fiber Coupled Laser Diode Module
1450nm
7W output power
Built-in TEC Cooling
Aiming Beam Optional
1450nm
7W output power
Built-in TEC Cooling
Aiming Beam Optional
Detailed Specification
Specifications
|
WSLB-1450-007-H
|
||
|
|
Min. |
Type |
Max. |
|
Center Wavelength@25≧ |
---- |
1450±40nm |
---- |
|
Spectral Width (FWHM) |
---- |
3nm |
---- |
|
Output Power |
---- |
7W |
---- |
|
Temperature Coefficient of Wavelength |
---- |
0.28nm / °C |
---- |
|
Threshold Current (Typ.) |
---- |
700mA |
900mA |
|
Operating Current (Typ.) |
---- |
2.8A |
3A |
|
Operating Voltage |
---- |
32V |
---- |
|
Cooling |
TEC Cooling |
||
|
Fiber Core Diameter |
600um |
||
|
Fiber Numerical Aperture |
0.22 |
||
|
Fiber Length |
100cm |
||
|
Connector Type |
SMA905/ST/FC |
||
|
Aiming Beam (2mw@650nm) |
Optional |
||
Wavespectrum offer Customized 1450nm Fiber Coupled LD.
l Customized Output Power
l Customized Fiber Core
l Dual-Wavelength or Tri-Wavelength Module Optional
(such as 7w@1450nm+350mw@635nm)
Contact us with info@wavespectrum-laser.com
