830nm High Power Fiber Coupled LD

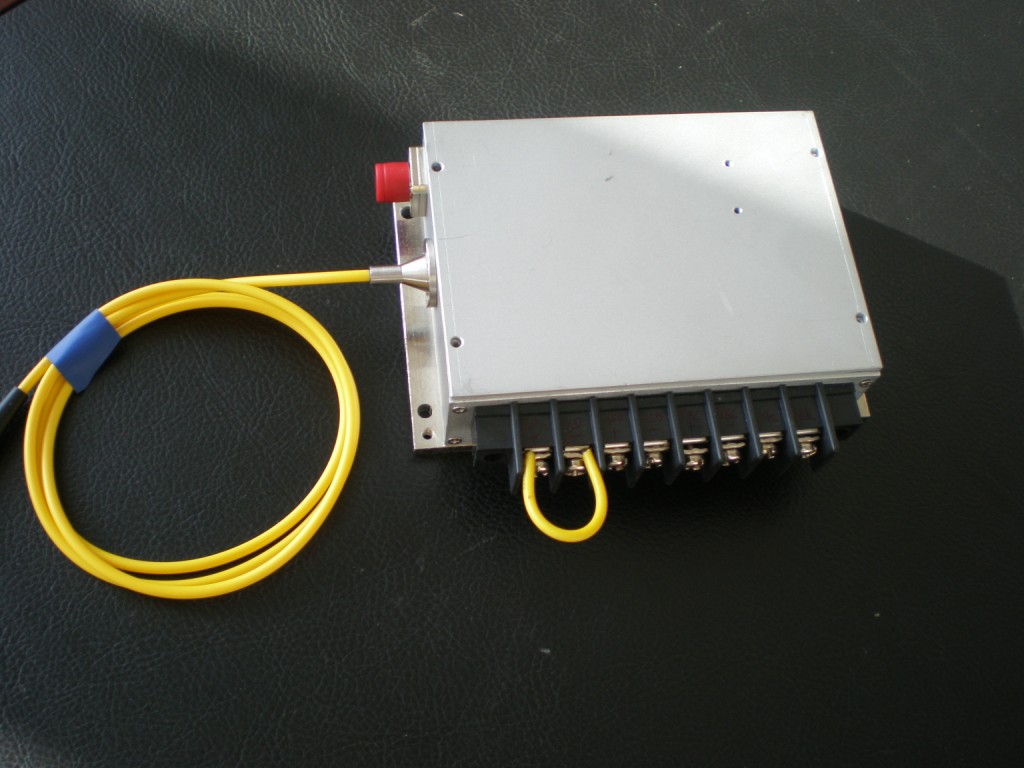

830nm High Power Fiber Coupled Laser Module
830nm
12W power
400um Fiber Core
TEC Cooling
Aiming Beam Optional
PD Optional
830nm
12W power
400um Fiber Core
TEC Cooling
Aiming Beam Optional
PD Optional
Detailed Specification
Specifications
|
830nm 10w~12w Fiber Coupled Laser Diode Module (LD) HHL PackageWSLB-830-012-H
|
||
|
|
Min. |
Type |
Max. |
|
Center Wavelength@25≧ |
---- |
830±10nm |
---- |
|
Spectral Width (FWHM) |
---- |
3nm |
---- |
|
Output Power |
---- |
12W |
---- |
|
Temperature Coefficient of Wavelength |
---- |
0.3nm / °C |
---- |
|
Threshold Current (Typ.) |
---- |
800mA |
---- |
|
Operating Current (Typ.) |
---- |
3.5A |
---- |
|
Operating Voltage |
---- |
12V |
---- |
|
Cooling |
TEC Cooling |
||
|
Fiber Core Diameter |
400um |
||
|
Fiber Numerical Aperture |
0.22 |
||
|
Fiber Length |
100cm |
||
|
Connector Type |
SMA905/ST/FC |
||
|
Aiming Beam (2mw@650nm) |
Optional |
||
Wavespectrum offer Customized 830nm Fiber Coupled LD.
l Customized Output Power
l Customized Fiber Core
l Dual-Wavelength or Tri-Wavelength Module Optional(such as 12w@830nm+350mw@635nm)
