635nm 5w fiber coupled LD

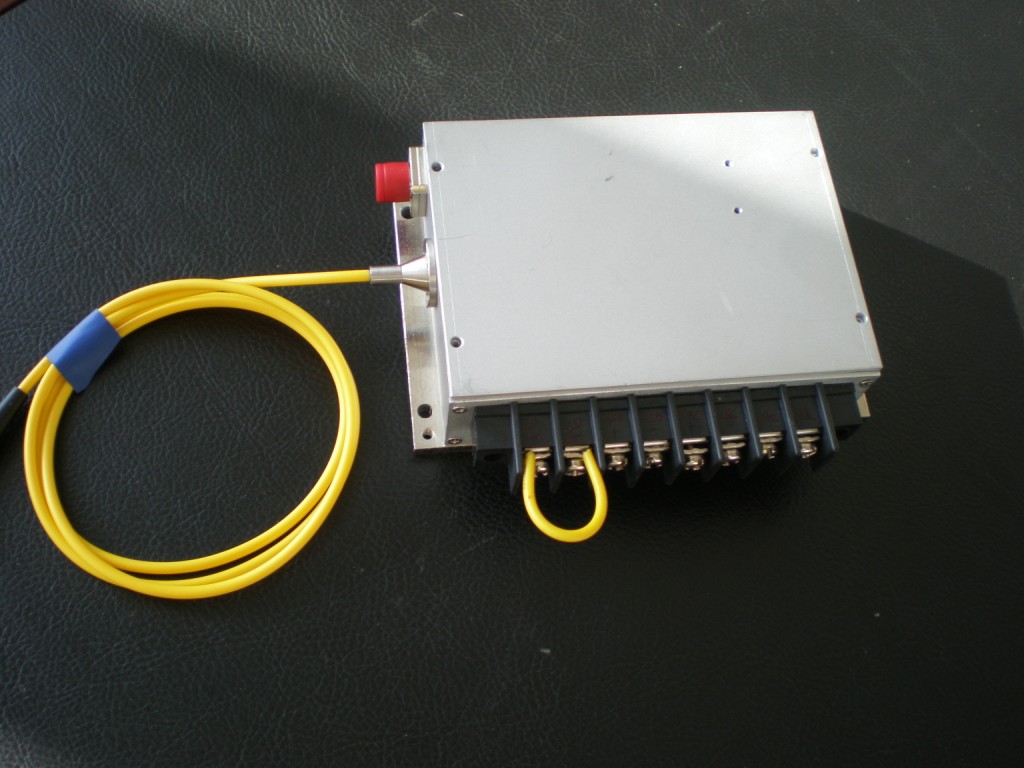

635nm Fiber Coupled Laser Module
635nm
5W Output Power
P2 Package
TEC Cooling Optional
Receptacle Fiber Connector Optional
Photodiodes Optional
Stainless Steel Armor Fiber Optional
635nm
5W Output Power
P2 Package
TEC Cooling Optional
Receptacle Fiber Connector Optional
Photodiodes Optional
Stainless Steel Armor Fiber Optional
Detailed Specification
Specifications
|
635nm 5W Fiber Coupled LD635nm High power Laser DiodesWSLB-635-005-H
|
||
|
|
Min. |
Type |
Max. |
|
Center Wavelength@25≧ |
---- |
635±10nm |
---- |
|
Spectral Width (FWHM) |
---- |
3nm |
---- |
|
Output Power |
---- |
5W |
---- |
|
Temperature Coefficient of Wavelength |
---- |
0.3nm / °C |
---- |
|
Threshold Current (Typ.) |
---- |
750mA |
---- |
|
Operating Current (Typ.) |
---- |
1200mA |
---- |
|
Operating Voltage |
|
35V |
|
|
Cooling |
TEC Cooling |
||
|
Fiber Core Diameter |
600um |
||
|
Fiber Numerical Aperture |
0.22 |
||
|
Fiber Length |
100cm |
||
|
Connector Type |
SMA905/ST/FC |
||
|
Package |
P3 Package |
||
