445nm 500mw fiber coupled LD

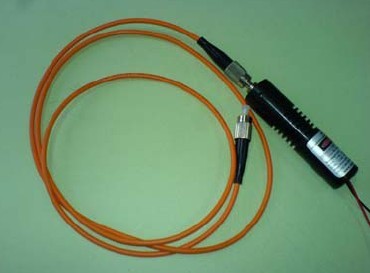

445nm 500mw fiber coupled Laser Module
445nm
500mw output power
40um 50um 60um 105um 200um Optional
Coaxial Package
445nm
500mw output power
40um 50um 60um 105um 200um Optional
Coaxial Package
Detailed Specification
Specifications
|
WSLP-445-500m-M
|
||
|
|
Min |
Type |
Max |
|
Center Wavelength@25≧ |
440nm |
---- |
455nm |
|
Spectral Width (FWHM) |
---- |
2.0nm |
---- |
|
Output Power |
400mW |
---- |
500mW |
|
Fiber Core |
40um 、50um、60um、 105um optional |
||
|
Slope Efficiency |
0.8mW/mA |
---- |
1.8mW/mA |
|
Monitor Current |
---- |
---- |
---- |
|
PD Reverse Voltage |
---- |
---- |
---- |
|
Fiber Connector |
FC/ST/SMA905 |
||
|
Fiber Length |
---- |
80cm |
100cm |
|
Threshold Current (Typ.) |
150mA |
---- |
300mA |
|
Operating Current (Typ.) |
---- |
1A |
1.2A |
|
Operating Voltage |
4V |
---- |
6V |
|
Package Style |
Coaxial |
||
|
|
|
||
