Wavespectrum Laser, Inc.

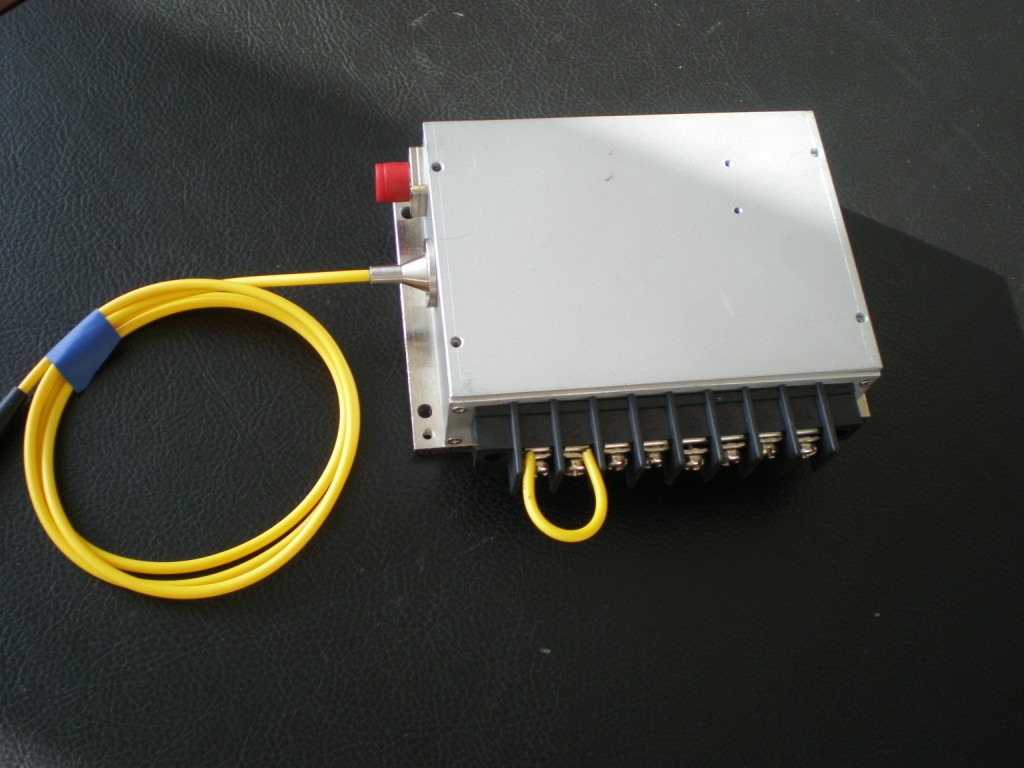

12w 880nm Fiber Coupled Laser Diode

WSLB-880-012-H

Parameter

Symbol

Value

Unit

Reverse Voltage

V_r

2.0

V

Operating Temperature

T_op

-15~+35

°C

Storage Temperature

T_stg

-40 ~ +85

°C

Leadsoldering temperature

T_is

260

°C

Features

Applications

         880nm laser diode

         12W output power

         P2 package

         TEC Cooling

         Medical laser treatment

         Others

Specifications

WSLB-880-012-H

Center Wavelength@25℃

880+/-10 nm

Spectral Width (FWHM)

3nm

Output Power

12W

Temperature Coefficient of Wavelength

0.28nm / °C

Slope Efficiency

1.0mW/mA

Threshold Current (Typ.)

0.7A

Operating Current (Typ.)

3.5A

Operating Voltage

12V

Thermistor Value(25°C)

----

TEC Current (Max)

----

TEC Voltage( Max)

----

Fiber Core

400um

-----

Fiber N.A.

0.22

Fiber Length

100cm

Bend Radius(Min)

25mm

Connector Type

ST/FC/SMA905

Cooling

TEC Cooling

Aiming Beam

Optional

Package Style

----

P2

----
