792nm Fiber Coupled Laser Diode (LD)

792nm Fiber Coupled Laser Diode

Wavespectrum Laser, Inc.

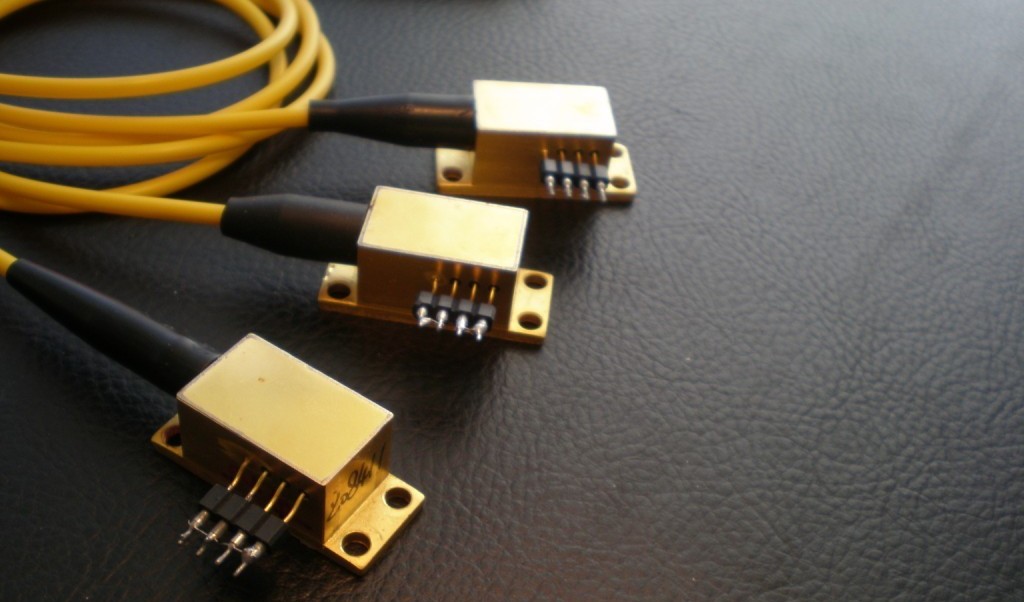

2w 792nm Fiber Coupled Laser Diode

WSLX-792-002-H

Parameter

Symbol

Value

Unit

Reverse Voltage

V_r

2.0

V

Operating Temperature

T_op

-15~+35

°C

Storage Temperature

T_stg

-40 ~ +85

°C

Leadsoldering temperature

T_is

260

°C

Features

Applications

         792nm laser diode

         2W output power

         4-pin package

         Medical laser treatment

         Others

Specifications

WSLX-792-002-H

Center Wavelength@25℃

792+/-10 nm

Spectral Width (FWHM)

3nm

Output Power

2W

Temperature Coefficient of Wavelength

0.28nm / °C

Slope Efficiency

1.0mW/mA

Threshold Current (Typ.)

0.7A

Operating Current (Typ.)

3.4A

Operating Voltage

2.0V

Thermistor Value(25°C)

---

TEC Current (Max)

---

TEC Voltage( Max)

---

Fiber Core

105um

200um

Fiber N.A.

0.22

Fiber Length

100cm

Bend Radius(Min)

25mm

Connector Type

ST/FC/SMA905

Receptacle  Connector

----

Aiming Beam

Optional

Package Style

----

4-pin

----
