785nm Laser Diode!!150mW 785nm Laser Diode
785nm Laser Diode!!150mW 785nm Laser Diode:

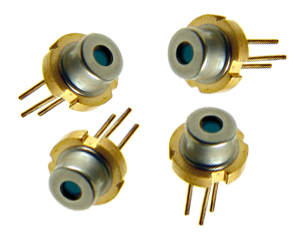

785nm laser diode
Single Mode
150mW output power
TO18   package
Detailed Specification





780nm single mode SM  Laser Diode TO18

785nm SM Laser Diode

Wavespectrum Laser, Inc.

150mw 785nm Single mode SM Laser Diode 5.6mm

WSLD-785-150m-1



Parameter

Symbol

Value

Unit

Reverse Voltage

Vr

2.0

V

Operating Temperature

Top

-10~+50

°C

Storage Temperature

Tstg

-40 ~ +85

°C

Leadsoldering temperature

Tis

260

°C



Features

Applications

*         785nm laser diode

*         150mW output power

*         CW/Pulse

*         TO18  package

*         Medical laser treatment

*         Laser indicator

*         Laser detector



Specifications

WSLD-785-150m-1



Min

Type

Max

Center Wavelength@25

775nm

785nm

795nm

Spectral Width (FWHM)

2.0nm

Output Power(CW)

150mW

Output Power(Pulse)

-----

Beam Divergence (FWHM)

17° x 9°//

Monitor Current

----

PD Reverse Voltage

----

PD Forward Current

----

Slope Efficiency

1.1mW/mA

Threshold Current (Typ.)

35mA

Operating Current (Typ.)

140mA

Operating Voltage

2.0V

Package Style

TO18
