445nm Fiber Coupled Laser System

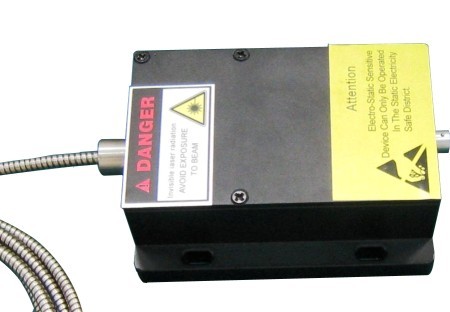

445nm Fiber Coupled Diode Laser System
445nm
0~30mw Output Adjustable
with 40um or 105um UV MM Fiber
High Power Stability
High Temperature Stability
with TEC Cooling
445nm
0~30mw Output Adjustable
with 40um or 105um UV MM Fiber
High Power Stability
High Temperature Stability
with TEC Cooling
Detailed Specification
Specifications
|
445nm(440nm~460nm) High Stability Fiber Coupled Diode Laser SystemWSLS-445-030m-M |
||
|
|
Min |
Type |
Max |
|
Center Wavelength@25≧ |
440nm |
445nm |
460nm |
|
Output Power adjustment range |
0~30mW |
||
|
Fiber Core |
40um MM fiber |
||
|
Long Term Power Stability |
---- |
1% |
3% |
|
Temperature Stability |
---- |
0.01°C |
---- |
|
Noise (p-p) (10Hz to 20MHz) |
---- |
2% |
---- |
|
RMS Noise (10Hz to 20MHz) |
---- |
0.2% |
---- |
|
Fiber Connector |
FC/ST/SMA905 |
||
|
Fiber Length |
---- |
80cm |
100cm |
|
DC Power Supply |
5V±0.1V, Ripple<25mVp-p, < 2A |
||
|
TTL modulation |
Optional |
||
|
Operating Temperature |
0~+50°C |
||
|
Cooling |
TEC Cooling |
||
