785nm Laser Diode!!100mW 785nm Laser Diode
785nm Laser Diode!!100mW 785nm Laser Diode:

785nm laser diode
100mW output power
Single Mode
Built-in PD
TO18   package
Detailed Specification



785nm 780nm single mode SM Laser Diode

785nm SM Laser Diode

Wavespectrum Laser, Inc.

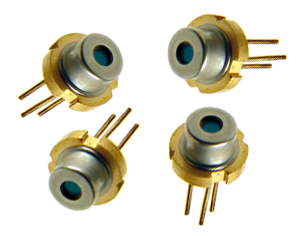

100mw 785nm Single mode SM Laser Diode TO18 5.6mm

WSLD-785-100m-1-PD



Parameter

Symbol

Value

Unit

Reverse Voltage

Vr

2.0

V

Operating Temperature

Top

-10~+50

°C

Storage Temperature

Tstg

-40 ~ +85

°C

Leadsoldering temperature

Tis

260

°C



Features

Applications

*         785nm laser diode

*         100mW output power

*         With PD

*         CW/Pulse

*         TO18  package

*         Medical laser treatment

*         Laser indicator

*         Laser detector



Specifications

WSLD-785-100m-1-PD



Min

Type

Max

Center Wavelength@25

775nm

785nm

795nm

Spectral Width (FWHM)

2.0nm

Output Power(CW)

100mW

----

----

Beam Divergence (FWHM)

15° x 8°//

Monitor Current

0.5mA

PD Reverse Voltage

30V

PD Forward Current

10mA

Slope Efficiency

1.1mW/mA

Threshold Current (Typ.)

35mA

Operating Current (Typ.)

115mA

Operating Voltage

2.0V

Package Style

TO18
