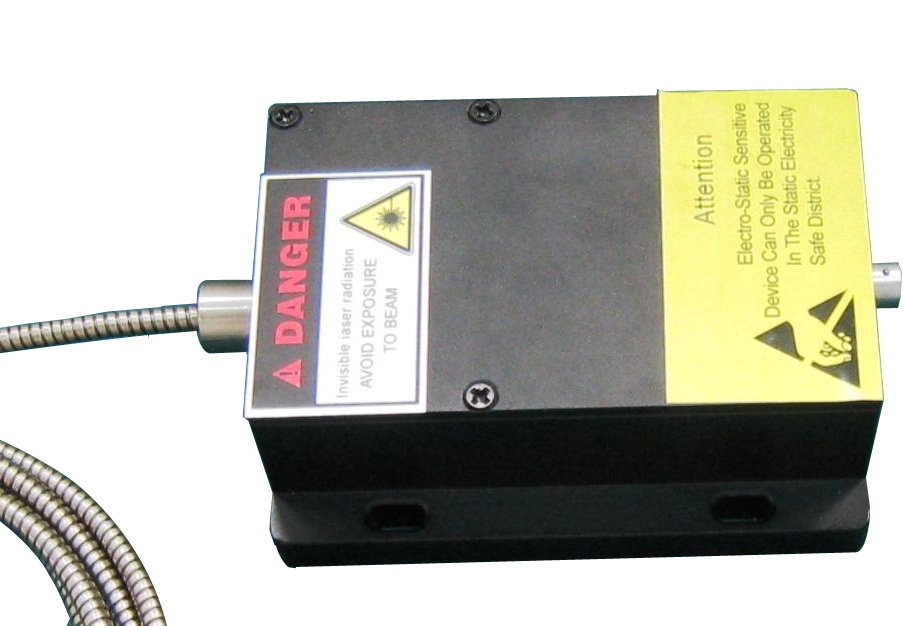

1310nm SM Fiber Coupled Diode Laser
1310nm Fiber Coupled Diode Laser System
1310nm
5mW output power
with 9um SM Fiber
High Power Stability
High Temperature Stability
with TEC Cooling
1310nm
5mW output power
with 9um SM Fiber
High Power Stability
High Temperature Stability
with TEC Cooling
Detailed Specification
Specifications
|
WSLS-1310-005m-9-DFB
|
||
|
|
Min |
Type |
Max |
|
Center Wavelength@25≧ |
1290nm |
1310nm |
1330nm |
|
Output Power adjustment range |
0~5mW |
||
|
Fiber Core |
9um SM fiber |
||
|
Long Term Power Stability |
---- |
1% |
3% |
|
Temperature Stability |
---- |
0.01°C |
---- |
|
Noise (p-p) (10Hz to 20MHz) |
---- |
2% |
---- |
|
RMS Noise (10Hz to 20MHz) |
---- |
0.2% |
---- |
|
Fiber Connector |
FC/ST/SMA905 |
||
|
Fiber Length |
---- |
80cm |
100cm |
|
DC Power Supply |
5V±0.1V, Ripple<25mVp-p, < 2A |
||
|
TTL modulation |
Optional |
||
|
Operating Temperature |
0~+50°C |
||
|
Cooling |
TEC Cooling |
||
|
Protection |
(1)Reverse polarity and transient/ESD, (2)over temperature and LED pre-failure indicator, (3)interlock |
||
Wavespectrum Laser, inc. can offer Customized (OEM) Fiber Coupled Diode Laser System
- Customized Wavelength
- Customized Output Power
- Customized Fiber Type (SM/PM/MM)
- Cutomized Modulation Frequency
Please contact us with info@wavespectrum-laser.com
