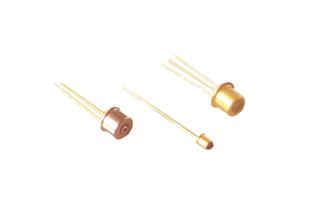

InGaAs PIN Potodetector PD 55um
InGaAs PIN Photodetectors
Low noise,
Low dark current
Low terminal capacitance
Standard TO package
55um Sensitive Area
Low noise,
Low dark current
Low terminal capacitance
Standard TO package
55um Sensitive Area
Detailed Specification
InGaAs PIN Photodetectors (PD)
Absolute Maximum Ratings
Parameter |
Symbol |
Value |
Unit |
|
Operating Temperature |
Top |
-40~+85 |
°C |
|
Storage Temperature |
Tstg |
-40 ~ +125 |
°C |
|
Reverse Voltage |
Vr |
30 |
V |
|
Lead Soldering Temperature(10 sec.) |
Tis |
260 |
°C |
Detailed specification
Specifications
|
Testing condition
|
WSPD-IGA-55-1
|
Unit |
|
Sensitive Area |
---- |
Dia 55 |
μm |
|
Responsibility |
=1310nm |
≥0.85 |
A/W |
|
=1550nm |
≥0.90 |
||
|
Response Spectrum |
----- |
850~1700 |
nm |
|
Dark Current (Typical) |
Vr=5V |
≤0.4 |
nA |
|
Capacitance |
Vr=5V |
0.3 |
PF |
|
Rise / Fall time |
Vr=5V |
0.20 |
ns |
|
Bandwidth |
3dB |
2.5 |
GHz |
|
Saturation power(Typical) |
Vr=5V |
≥2 |
mW |
