405nm 4w fiber coupled laser system
405nm High Power Fiber Coupled Laser System
405nm
4W Output Power
900um Fiber Core
0.46N.A.
Water Cooling
405nm
4W Output Power
900um Fiber Core
0.46N.A.
Water Cooling
Detailed Specification

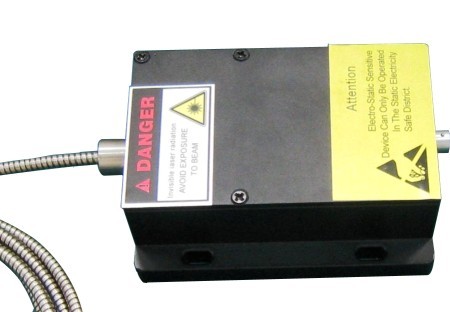

4W 405nm Fiber Coupled Laser System
Specification：
l Lifetime：>10k hours
l Easy to use
l Cooling；TEC & Water Cooling
l Output power：>4W
l With PC control
l With Driver supply
Detailed Data：
l Output power from Fiber： >4W
l Wavelength： 405nm
l Fiber Length： 4.5m
l Fiber Core： 900um，
l Fiber N.A.： 0.46
l Fiber Connector： SMA905/PC/ST
l Power Supply： 220V ，<400W
l Water Cooling： 15-25℃
l Water speed: ≥1L/min
l Operatation Temperature： 23±5℃
l Operatation Humidity： ≤70%(no dew)
l Storage Temperature： -30--80℃
l Storage Humidity： ≤90%(no dew)
