850nm 500mw Laser Diode 9mm Package

850nm 0.5w Laser Diode

Wavespectrum Laser, Inc.

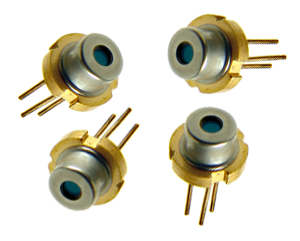

500mw 850nm Laser Diode TO 5 Package

WSLD-850-500m-2-PD

Parameter

Symbol

Value

Unit

Reverse Voltage

V_r

3.5

V

Operating Temperature

T_op

-10~+40

°C

Storage Temperature

T_stg

-15 ~ +85

°C

Leadsoldering temperature

T_is

260

°C

Features

Applications

         850nm laser diode

         500mW output power

         With PD

         CW

         TO5  package

         Medical laser treatment

         Laser indicator

         Laser detector

Specifications

WSLD-850-500m-2-PD

Min

Type

Max

Center Wavelength@25℃

830nm

845nm

860nm

Spectral Width (FWHM)

2.0nm

Output Power

500mW

Emitter

Single

Beam Divergence (FWHM)

30°_┴ x 12°_//

Monitor Current

----

PD Reverse Voltage

30V

PD Forward Current

10mA

Slope Efficiency

0.75mW/mA

Threshold Current (Typ.)

220mA

Operating Current (Typ.)

890mA

Operating Voltage

1.8 V

Package Style

TO5
