Wavespectrum Laser, Inc.

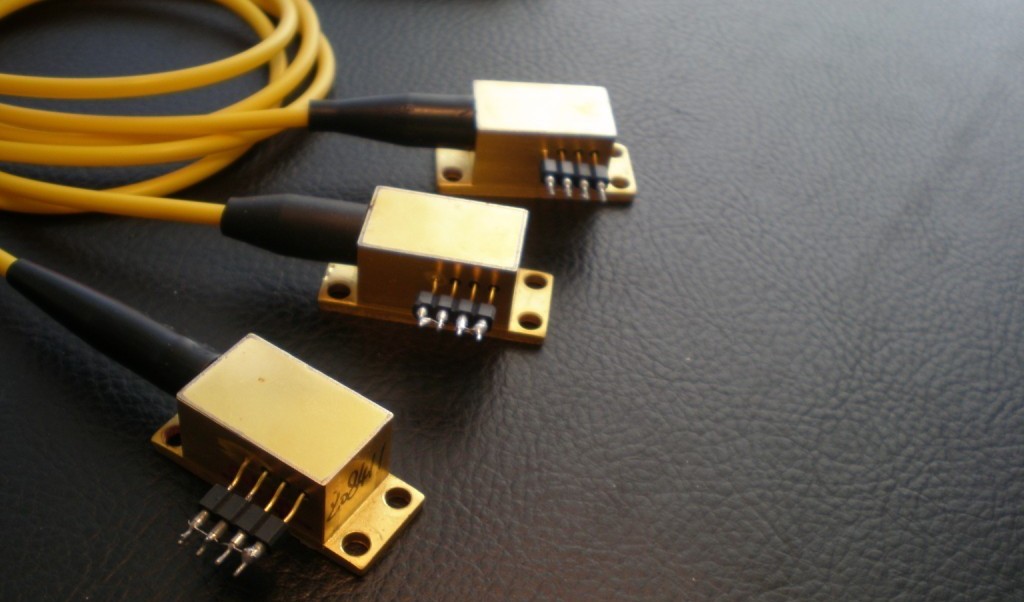

350mw 1450nm Fiber Coupled Laser Diode

WSLX-1450-350m-H

Parameter

Symbol

Value

Unit

Reverse Voltage

V_r

2.0

V

Operating Temperature

T_op

-10~+30

°C

Storage Temperature

T_stg

-40 ~ +85

°C

Leadsoldering temperature

T_is

260

°C

Features

Applications

         1450nm laser diode

         CW Mode

         350mW output power

         4-pin package

         Medical laser treatment

         Pumping

         Printing

Specifications

WSLX-1450-350m-H

Center Wavelength@25℃

1410nm

1450nm

1490nm

Spectral Width (FWHM)

3nm

Output Power

350mW

Temperature Coefficient of Wavelength

0.3nm / °C

Slope Efficiency

0.28mW/mA

Threshold Current (Typ.)

0.70A

Operating Current (Typ.)

2.80A

Operating Voltage

1.7V

Thermistor Value(25°C)

----

TEC Current (Max)

----

TEC Voltage( Max)

----

Fiber Core

105um

200um

Fiber N.A.

0.22

Fiber Length

100cm

Bend Radius(Min)

25mm

Connector Type

ST/FC/SMA905

Receptacle  Connector

Optional

Aiming Beam

Optional

Package Style

-

4-pin

-
