| Wavelength: |
940nm laser diode
3.5W output power
4-pin package
|
940nm Fiber Bundled Laser Diode |
||||
|
940nm Fiber Coupled Laser Diode |
Wavespectrum Laser, Inc. |
|||
|

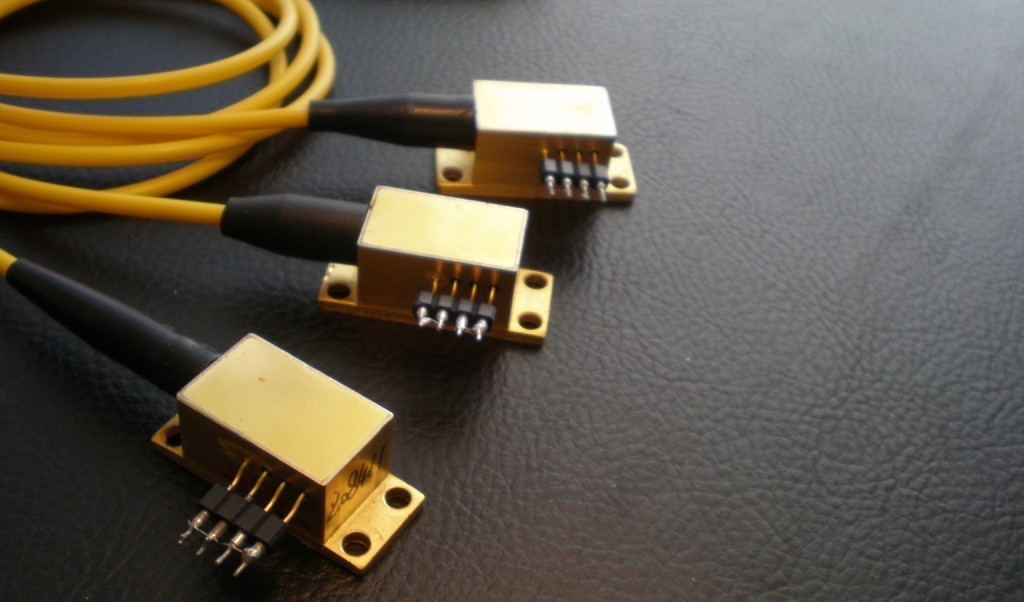

3.5w 940nm Fiber Coupled Laser Diode |
||||
|
WSLX-940-003-H |
||||
|
|
||||
|
Parameter |
Symbol |
Value |
Unit |
|
|
Reverse Voltage |
Vr |
2.0 |
V |
|
|
Operating Temperature |
Top |
-10~+30 |
°C |
|
|
Storage Temperature |
Tstg |
-40 ~ +85 |
°C |
|
|
Leadsoldering temperature |
Tis |
260 |
°C |
|
|
|
||||
|
Features |
Applications |
|||
|
|
|
|||
|
|
||||
|
Specifications |
WSLX-940-003-H |
|||
|
Center Wavelength@25≧ |
940+/-10 nm |
|||
|
Spectral Width (FWHM) |
3nm |
|||
|
Output Power |
3.5W |
|||
|
Temperature Coefficient of Wavelength |
0.28nm / °C |
|||
|
Slope Efficiency |
1.0mW/mA |
|||
|
Threshold Current (Typ.) |
0.35A |
|||
|
Operating Current (Typ.) |
3A |
|||
|
Operating Voltage |
2.3.0V |
|||
|
Thermistor Value(25°C) |
--- |
|||
|
TEC Current (Max) |
---- |
|||
|
TEC Voltage( Max) |
|
|||
|
Fiber Core |
---- |
105um |
||
|
Fiber N.A. |
0.22 |
|||
|
Fiber Length |
100cm |
|||
|
Bend Radius(Min) |
---- |
|||
|
Connector Type |
ST/FC/SMA905 |
|||
|
Cooling |
TEC Cooling |
|||
|
Aiming Beam |
Optional |
|||
|
Package Style |
4-pin |
|||
|
|
||||
Wavespectrum offer Customized 940nm Fiber Coupled LD.
l Customized Output Power
l Customized Fiber Core
l Dual-Wavelength or Tri-Wavelength Module Optional
(such as 5w@940nm+5w@808nm)
Contact us with info@wavespectrum-laser.com
