830nm Fiber Coupled Laser Diode

830nm Fiber Coupled Laser Diode

Wavespectrum Laser, Inc.

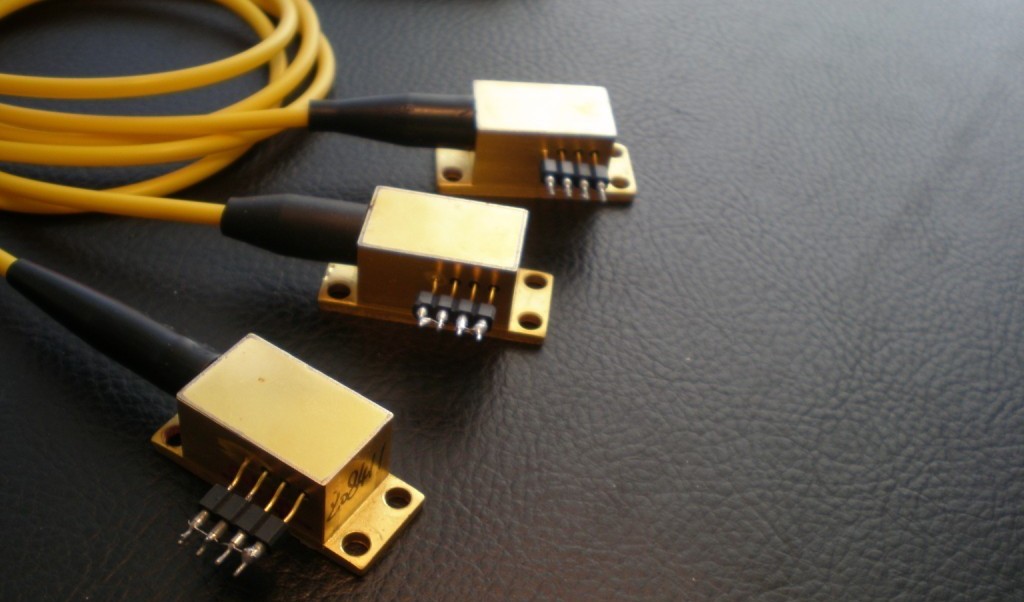

2w 830nm Fiber Pigtailed Laser Diode

WSLX-830-002-H

Parameter

Symbol

Value

Unit

Reverse Voltage

V_r

2.0

V

Operating Temperature

T_op

-10~+30

°C

Storage Temperature

T_stg

-40 ~ +85

°C

Leadsoldering temperature

T_is

260

°C

Features

Applications

         830nm laser diode

         2W output power

         4-pin package

         Medical laser treatment

         Printing

Specifications

WSLX-830-002-H

Center Wavelength@25℃

830nm+/-10nm

Spectral Width (FWHM)

3nm

Output Power

2 W

Temperature Coefficient of Wavelength

0.3nm / °C

----

----

Threshold Current (Typ.)

800mA

Operating Current (Typ.)

3.5A

Operating Voltage

2V

----

----

TEC Cooling

Optional

Photodiodes

Optional

Fiber Core

105um

Fiber N.A.

0.22

Fiber Length

100cm

----

----

Connector Type

ST/FC/SMA905

Package Style

4-pin or 9-pin
