635nm Fiber Coupled Diode Laser

635nm Fiber Coupled Laser Diode

Wavespectrum Laser, Inc.

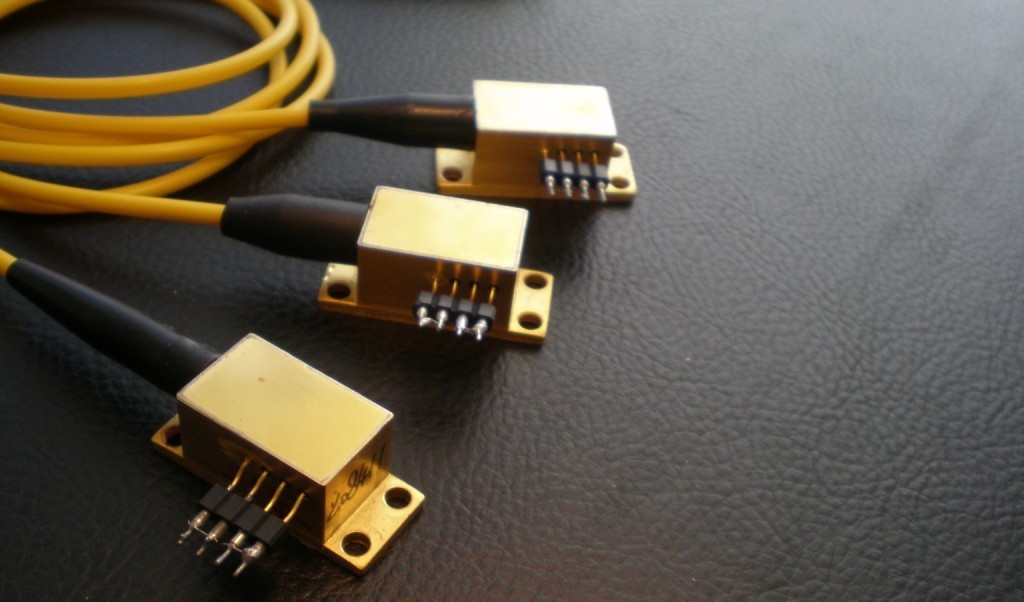

350mw~400mw 635nm Red Fiber Coupled Laser Diode (LD)

WSLX-635-350m-H

Parameter

Symbol

Value

Unit

Reverse Voltage

V_r

2.0

V

Operating Temperature

T_op

-10~+30

°C

Storage Temperature

T_stg

-40 ~ +85

°C

Leadsoldering temperature

T_is

260

°C

Features

Applications

         635nm laser diode

         350mW output power

         CW

         4-pin  package

         Medical laser treatment

Specifications

WSLX-635-350m-H

Min

Type

Max

Center Wavelength@25℃

630nm

635nm

642nm

Spectral Width (FWHM)

2.5nm

Output Power

350mW

Temperature Coefficient of Wavelength

0.25nm / °C

Slope Efficiency

0.95mW/mA

Threshold Current (Typ.)

0.75A

Operating Current (Typ.)

1.2A

Operating Voltage

2.2V

Thermistor Value(25°C)

----

TEC Cooling

Optional

Photodiodes

Optional

Fiber Core

100um

Fiber N.A.

0.22

Fiber Length

100cm

Bend Radius(Min)

25mm

Connector Type

ST/FC/SMA905

Package Style

4-Pin or 9-pin Package
